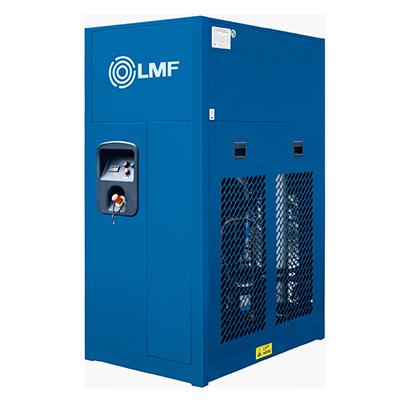

LD Refrigerated Compressed Air Dryer

The quality of compressed air required by most industrial applications needs to have moisture removed at source, failure to do that efficiently can spoil downstream product and damage tooling at a high cost for the end user.
LMF offer the energy efficient and environmentally friendly LD series of refrigerated dryers capable of producing high quality air for thousands of applications.

Low pressure drop for system efficiency
High quality build components for reliability
Dependable digiPro and EDS dewpoint control
Environmentally friendly R134a refrigerant standard across all models
Integrated filters maintain particulate removal at less than 0.01μ and oil carryover less than 0.01ppm
Effective condensate management
Premium quality components and build quality

LD features

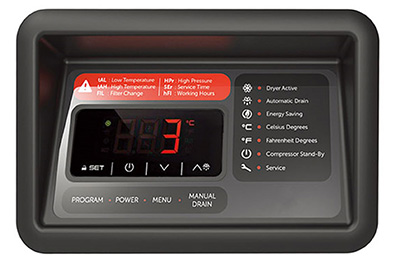

Digital control

LD Refrigerated Air Dryers have Digi-Pro Control (LD23-3915) or state of the art Energy saving ESD Control (LD 5085 – 12500) installed as standard. Both Controllers are multi functional with menus that include operating efficiency, alarms,service and diagnostics.

Ease of maintenance
For ease of maintenance the LD dryers have lift off panels which allow full access for service requirements. Models LD23 – 2775 have integral line filtration within the cabinet speeding up installation time and reducing fittings costs.

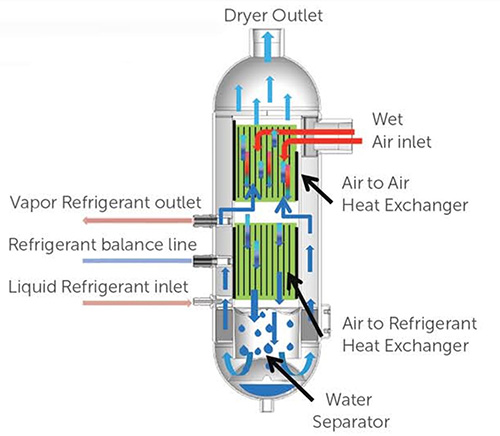

Unique heat exchanger design

The unique LD mono block heat exchanger has been designed specially to dry compressed air, an in built economizer and centrifugal separator provide very effective moisture removal.

Reliability and build quality
The key to a reliable refrigerant air dryer lies in the design and reliability of key components. Condenser fan switch, klixon overtemperature protection, high quality hermetically sealed refrigerant compressor and responsive and accurate high pressure switches are key to the ultimate LD series reliability.
